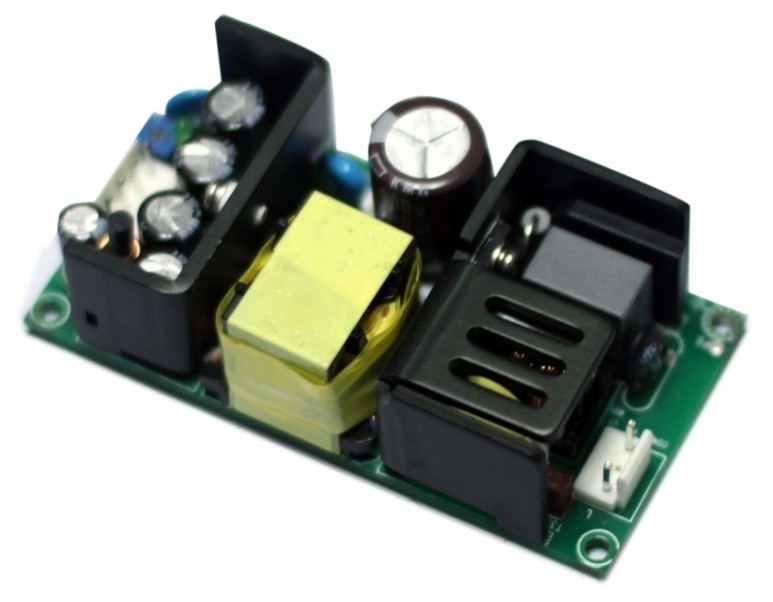

BOU-60S系列
■ 特點
● 全球電壓輸入：90～264Vac；高效率，低待機功耗
● 小型化設計，結構緊湊，安裝方便
● 超寬工作溫度范圍 (-25℃～
● 保護功能全面：過載/短路/過壓
● LED工作指示，輸出可調功能可選
● 豪華電解電容，高可靠性，長壽命
● 質保2年
■規格
|
產品名稱 注1 |
BOU-60S5 |
BOU-60S12 |
BOU-60S15 |
BOU-60S18 |
BOU-60S24 |
BOU-60S27 |
BOU-60S48 |
||
|
輸出 |
額定輸出電壓 |
5V |
12V |
15V |
18V |
24V |
27V |
48V |
|
|
整定范圍（10%load） |
5.00V~5.10V |
12.00~12.10V |
15.00~15.10V |
18.00~18.10V |
24.00~24.10V |
27.00~2710V |
48.00~48.10V |
||
|
額定輸出電流范圍 |
0~ |
0~ |
0~ |
0~ |
0~ |
0~ |
0~ |
||
|
額定輸出功率 |
50W |
60W |
60W |
60W |
60W |
60W |
60W |
||
|
紋波噪聲0~ |
50mV |
120mV |
150mV |
180mV |
240mV |
270mV |
240mV |
||
|
紋波噪聲 |
120mV |
360mV |
360mV |
360mV |
360mV |
360mV |
480mV |
||
|
輸出調節范圍 |
-5% ~ +10% of rated output voltage |
||||||||
|
穩壓精度 |
±3.0% |
±3.0% |
±3.0% |
±3.0% |
±3.0% |
±3.0% |
±3.0% |
||
|
輸出啟動時間 |
≤1S (230Vac input, Full load) |
||||||||
|
輸出保持時間 |
≥20mS(230Vac input, Full load) |
||||||||
|
電壓過沖 |
<5.0% |
||||||||
|
動態特性 |
10%-100%Load:10%Vp-p 10%-50%Load: 5%Vp-p 50%-100%Load: 5%Vp-p |
||||||||
|
輸入 |
輸入電壓范圍 |
90Vac~264Vac |
|||||||
|
額定輸入電壓 |
100Vac~240Vac |
||||||||
|
啟動電壓 |
85Vac |
||||||||
|
功率因數 |
/ |
||||||||
|
效率 (典型值) |
81% |
84% |
85% |
85% |
86% |
86% |
87% |
||
|
待機功耗 |
<0.8W |
||||||||
|
輸入電流 (最大值.) |
< |
||||||||
|
啟動沖擊電流 |
< |
||||||||
